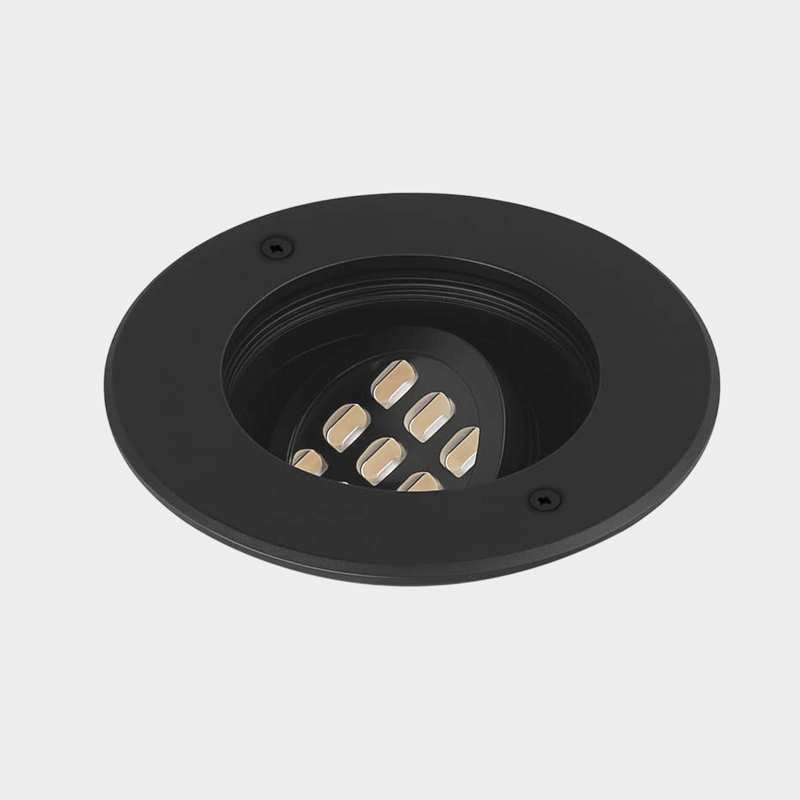

Ignia F19

Inground Floor Luminaire

F19-193169

General

MaterialStainless Steel Trim
Aluminum Body

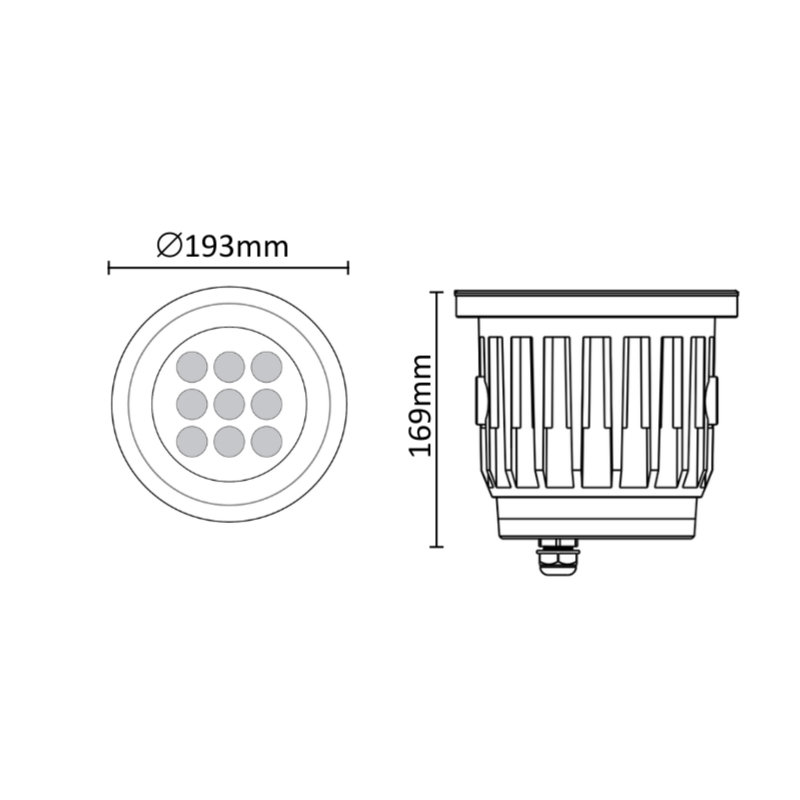

WidthDia: 7-5/8 in (193 mm)
Height6-5/8 in (169 mm)
FinishesBlack (RAL9011)
Optional: Steel Brush

Electrical Information

Type of LampLED
Power18W
Input VoltageDC 24V | DC 12V
Ballast TypeRemote Constant Voltage
ControllableOn/Off | Phase | DALI | DMX

Lighting Technology

Color Temperature (CCT)2700K | 3000K | 4000K | 6000K
Luminous Flux2164 lm @ 3000K
Color Rendering Index (CRI)>90
Light DistributionSymmetric
Beam Angles6° | 15° | 24° | 36° | 60°
AdjustabilityTiltable up to ±20°

Safety

Weather ResistantYes (IP67)
Impact ResistanceYes (IK08)
Ambient Temperature131°F (55°C)

Accessories

OpticalClear Glass
Frosted Glass
Honey Comb Louver
Half Shield Screen
Back Box MaterialPVC

Technical Datasheet

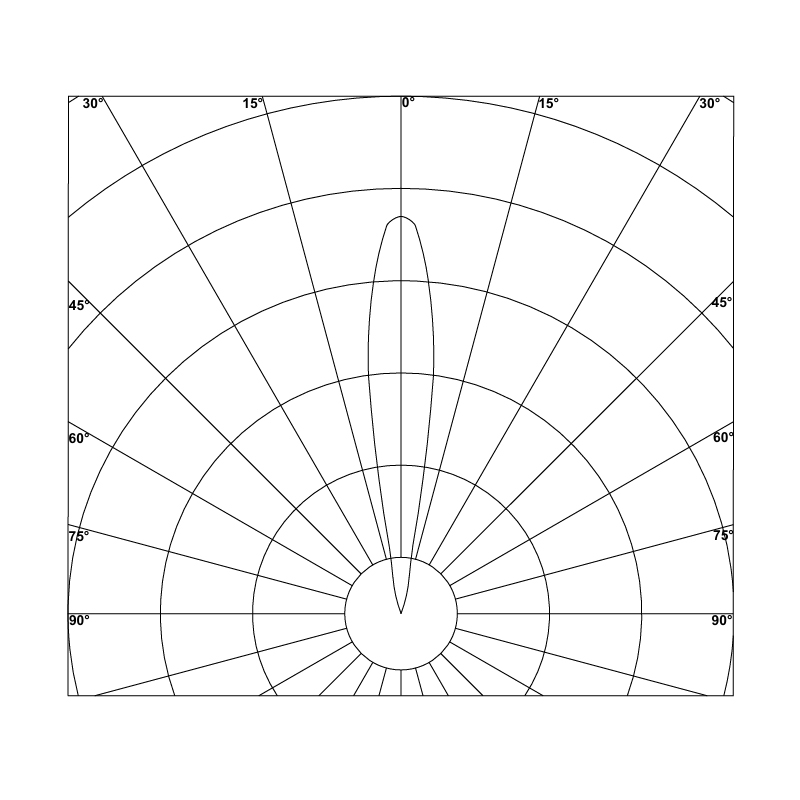

Photometric Data

Categories:,

Description

Architectural-grade inground uplighters, made of Stainless Steel Trim and Aluminum Body, designed with high-output COB LEDs and precision optics to ensure uniform vertical illumination for facades, columns, and landscape structures. Available in narrow to wide beam angles.
